Use of Socket Eye Link Fitting

1. Determine the usage occasion and type of hanging panels: Select the corresponding hanging panel type based on cable length, load-bearing requirements, line direction and other conditions, and carefully determine the location of the hanging panels on walls such as columns, towers, and bridge piers.

2. Hanging boards should be installed at certain intervals. Under normal circumstances, the distance between cables and communication lines is between 50-70cm, and the distance between hanging boards is generally controlled at 1.5-2.5 meters.

3. The installation height of fitting is also very important, usually around 1.8-3.5 meters. At the same time, according to the direction and terrain of the line, straighten the straight line between each hanging board to keep the entire line in a flat state, with good wind resistance and required load-bearing capacity.

4. When installing socket eye fitting, pay attention to the position and number of each fixing hole to fix the socket in a safe position. For cables that need to be fixed with socket eye link fittings in key parts such as power stations and substations, they should also be safely grounded in strict accordance with relevant technical specifications to ensure normal operation of the lines.

Application

Socket eye fittings are connecting hardware in power fittings. Bowl hanging plates are often used in transmission towers. Single socket eyes are used to connect suspension clamps and insulator strings in power grid construction and work with other accessories to connect The role of wires and insulation. The single-joint socket eye adopts the hot-dip galvanizing process. High-heat-dip galvanized steel is used as raw material and is welded through advanced technology.

Specification Chart

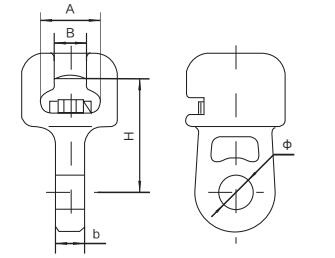

	Type	Dimension(mm)					Failure Load KN	Weight(kg)
		B	A	H	Φ	b
	W-7A	19.2	34.5	70	20	16	70	0.8
	W-7B	19.2	34.5	115	20	16	70	0.9
	W-10	19.2	34.5	85	20	20	100	1.0
	W-12	19.2	34.5	90	24	24	120	1.3

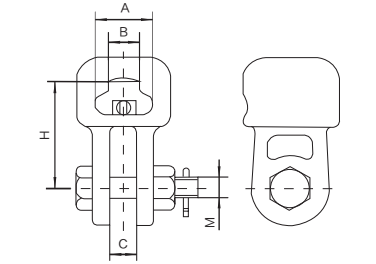

	Type	Dimension(mm)					Failure Load KN	Mark
		B	A	H	M	C
	WS-7	19.2	34.5	70	16	20	70	16
	WS-10	19.2	34.5	85	18	20	100	16
	WS-12	19.2	34.5	85	22	24	120	16
	WS-16	23.0	42.5	95	24	22	160	20
